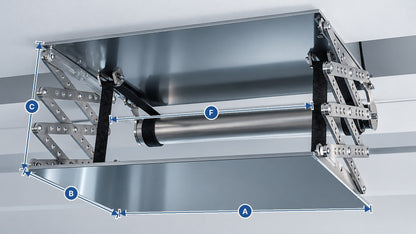

Beamerlift Ultrakompakt-XL Maße: A Breite 63,5 cm, B Öffnungstiefe 40 cm, C Hubhöhe, F Stellfläche innen 45,7 cm – Projektorlift von Braun Antriebe

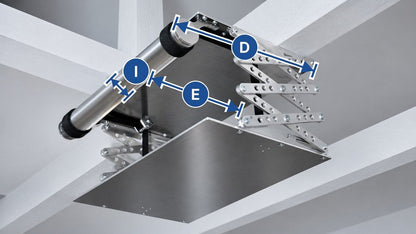

Projektorlift XL schräg von unten: D Gehäusetiefe 45 cm, E Stellfläche innen 39 cm – Beamer Deckenlift

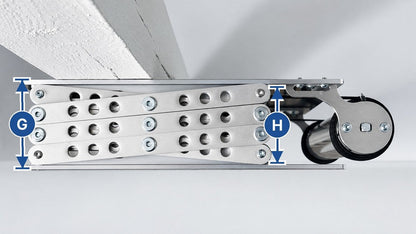

Beamer Deckenlift Ultrakompakt-XL eingefahren: G Außenhöhe und H Innenhöhe ab 10,7 cm – flache Einbauhöhe

Beamer Deckenlift elektrisch – Projektor Deckenlift mit X-Lift-Mechanik von Braun Antriebe

Projektor Deckenlift elektrisch – Beamer Lift mit Fernbedienung, X-Lift von Braun Antriebe

Motorisierter Beamerlift für die Decke – Beamer ausfahrbar, Projektorlift X-Lift von Braun Antriebe

Projektorlift Decke – elektrischer Beamer Deckenlift von Braun Antriebe, Beamer versenkbar in der Decke

Elektrischer Beamerlift – Beamer in Decke einbauen und ausfahren, Projektorlift von Braun Antriebe

Montage der Beamer-Deckenlifte in der eigenen Werkstatt von Braun Antriebe – Made in Germany

Beamer Deckenlift – technische Zeichnung mit Maßen, elektrischer Projektorlift X-Lift von Braun Antriebe

Braun Antriebe

Projector Ceiling Lift "Ultra-Compact XL" – Low-Profile Lift, up to 25 kg

Name: Projector Ceiling Lift "Ultra-Compact XL" – Low-Profile Lift, up to 25 kg
Brand: Braun Antriebe
SKU: 10043
Price: 485.0 EUR
Availability: InStock

485,00 €

Projector ceiling lift Ultra-Compact XL – flat design with more room for wider projectors.

The projector lift XL has the same flat design as the L but is 10 cm wider. Its 45.7 × 39 cm platform (W × D, inside) also takes wider projectors. With 60 cm travel, an installation height of just 10.7 cm is enough. The projector stands inside the lift or is mounted underneath it and comes out of the ceiling at the push of a button.

Key facts at a glance

Housing incl. motor unit	63.5 × 45 cm (W × D)
Opening of the base unit	63.5 × 40 cm (W × D)
Inner platform	45.7 × 39 cm (W × D)
Rated load	1–25 kg
Drive motor	SL45 20/15 · 20 Nm
Weight of lift	approx. 10 kg
Material / colour	aluminium, silver
Warranty	5 years

Installation height per travel

Travel (C)	Outer height (G)	Inner height (H)
60 cm	10.7 cm	9.5 cm
80 cm	13.2 cm	12.0 cm
150 cm	23.0 cm	21.8 cm
230 cm	35.0 cm	33.8 cm

Outer height G is the space the retracted lift needs in the ceiling. Inner height H is the maximum height of your projector. You will find the letters on the dimension photos in the image gallery.

📄 Installation & operating instructions

Complete manual as PDF – ceiling installation, setting the travel, electrical connection and smart-home control, fitting a projector/spotlight, troubleshooting and maintenance.

Download manual (PDF)

Hub: 60

60
80
150
230

Product variants

Instalment payment available

Unsere Experten beraten Sie persönlich

Direkt zur passenden Lösung.

Beratung anfordern

Projector Ceiling Lift "Ultra-Compact XL" – Low-Profile Lift, up to 25 kg

60

485,00 €

Product information

Features

Quality that impresses

We use plain bearings exclusively from the German brand manufacturer igus. They are generously sized and therefore run very quietly. The lift is driven by a 230 V tubular motor SL45 20/15 with 20 Nm torque (SW60 shaft) at 15 rpm. With around 40 kg of lifting force it has plenty of reserve, as the rated load is limited to 1–25 kg. The upper and lower end positions can be set precisely on the motor. On request, the lift can also be triggered via the projector’s trigger output using a relay. The motor is switched like a roller-shutter motor – by switch, radio remote or smart home systems such as Alexa, Apple Home, Loxone, KNX or Homematic. With 60 cm travel, an installation height of just 10.7 cm is enough.

Flat design with recessed motor unit

When retracted, the projector is invisible: the room looks tidy and the device is protected. At the push of a button the lift extends and the projector is ready for use. It stands inside the lift or is mounted underneath – for upside-down mounting we recommend rubber feet. No additional false ceiling is required. The recessed motor unit leaves the maximum platform space. Platform and mounting plates are made of 6 mm aluminium and do not warp under load. Optionally, a plasterboard panel can be fitted to the underside so that the retracted lift sits flush with the ceiling.

20 mm solid material, igus bearings

Projectors must be moved gently – without jerking or bouncing. That is exactly what the well-designed bearing system of our scissor lift ensures: it moves smoothly and steadily into the desired position. The advantages of the igus plain bearings at a glance:

lubrication-free
corrosion-resistant
low maintenance
good media resistance
high compressive strength
low friction
high mechanical damping
insensitive to dirt
low weight
high wear resistance

Technical details

Technical data sheet

Projector lift XL

Projector lift XL – Side view, retracted – dimensions G, H — Side view, retracted – dimensions G, H

Dimensions as shown

A	Housing width incl. motor unit	63.5 cm
A	Opening width of base unit	63.5 cm
B	Opening depth of base unit	40 cm
C	Travel (depending on version)	see below
D	Housing depth incl. motor unit	45 cm
E	Inner platform depth	39 cm
F	Inner platform width	45.7 cm
I	Diameter of motor unit	65 mm

Technology & features

Drive motor	SL45 20/15 (20 Nm, SW60)
Rated load	1–25 kg
Guidance	IGUS plain bearings
Projector mounting	inside or underneath the lift
Material	aluminium
Housing colour	silver*
Weight of lift	approx. 10 kg
Warranty	5 years

Heights per travel

C Travel	G Outer height	H Inner height
60 cm	10.7 cm	9.5 cm
80 cm	13.2 cm	12.0 cm
150 cm	23.0 cm	21.8 cm
230 cm	35.0 cm	33.8 cm

Outer height G = space needed in the ceiling · Inner height H = maximum height of your projector

* Machining marks may be visible.

Scope of delivery

1 x Lift
1 x igus energy chain
1 x Operating instructions
1 x Extra-strong foam-padded packaging for safe transport

FAQs

The most important questions about our ceiling lifts – answered briefly and clearly.

How do I install the projector ceiling lift?

The lift is supplied pre-assembled and ready to connect – including drive motor, electronics housing and connection cable. A radio set (transmitter and receiver) is not included in the scope of delivery and is available separately as an option. You install it in the ceiling or in a suspended ceiling; no additional false ceiling is required. The projector can be mounted either inside or underneath the lift.

Can I install the ceiling lift myself?

Yes. With a little DIY skill, you can easily install it yourself – illustrated installation instructions are included. The final 230 V mains connection should be made by an electrician. If you have any questions, we will support you free of charge via WhatsApp or email.

How is the projector lift controlled – KNX, Loxone, Homematic or a roller shutter switch?

It is controlled just like a roller shutter: via any roller shutter or blind switch or actuator. This means the ceiling lift can be integrated into practically any smart home system – for example KNX, Loxone, Homematic, Gira, Apple Home or Alexa. A radio set (transmitter and receiver) is not included in the scope of delivery, but can be ordered as an option.

Do I need a suspended ceiling?

No, not necessarily. Thanks to their low installation depth, our lifts also fit into shallow ceiling voids; the BA 60×60 is specially designed for grid ceilings. Optionally, plasterboard panels can be fitted to the underside so that the lift disappears completely into the ceiling.

How heavy can my projector be?

The rated load depends on the model: the MINI ceiling lift is designed for 1–15 kg, the Ultra-compact L for 1–20 kg, and the Ultra-compact XL, the JUMBO series and the BA 60×60 for 1–25 kg each. This means the larger models can also carry large, high-brightness laser projectors. The lifts are driven by 230 V tubular motors with 10, 20 or 40 Nm – depending on the model – so the drive always runs with power in reserve.
